DRAM (Dynamic Random Access Memory), that is, Dynamic Random Access Memory, the most common system memory. DRAM can only hold data for a short period of time. In order to maintain data, DRAM uses capacitive storage, so it must be refreshed every once in a while, and if the memory unit is not refreshed, the stored information will be lost. (Data loss if you shut down)

    SDRAM (Syncronized Dynamic Ramdam Access Memory) is a synchronous dynamic random access memory, an upgraded version of DRAM. On the basis of SDRAM, DDR (double rate) has been developed, that is, double speed SDRAM, DDR and several versions, such as DDR2, DDR3, DDR4, the faster the DDR read and write rate, and there is a low-power version of DDR, the general low-power version of DDR is named LPDDRn (n is 2, 3, 4).

Inexpensive, high-capacity dynamic random-access memory (DRAMs) chips are currently used in modern computers as the “main memory” units. These combinations of metal-oxide-semiconductor field-effect transistors (MOSFETs) and metal-oxide-semiconductor (MOS) capacitors may exist in asynchronous or synchronous forms.

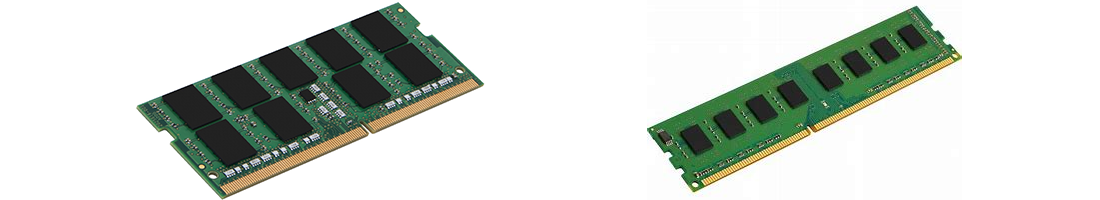

What Is SDRAM?

Synchronous DRAM represents an optimized data processing chip with significantly improved performance. These integrated circuits possess external pin interfaces controlled by external clock signals.

How Does SDRAM Work?

SDRAMs have clock signals routed through an integrated finite state machine that allows them to “pipeline” incoming commands. SDRAM circuits allow new commands to be received while ongoing orders are processed. SDRAM is typically divided into equal parcels of memory cells called banks. This arrangement allows memory interleaving where all the banks can be read at the same time. The outcome of this unique arrangement is faster data transfer and a higher overall performance rating than a comparable asynchronous DRAM.

Applications of SDRAM

Synchronous dynamic RAM can be used to optimize computing across a vast array of digital electronics including computers, video games, and other portable devices. Synchronous DRAM can be custom-built for battery-powered tech, and can operate on low power. Power savings can be derived from temperature-dependent refreshes or circuit-enabled power-down modes.

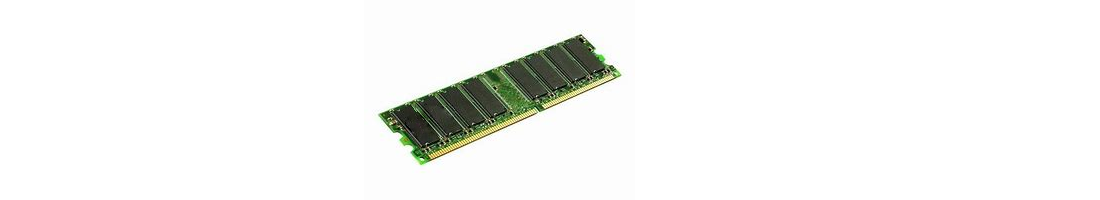

2.Introduction to DDR SDRAM

DDR SDRAM or double-data-rate synchronous dynamic random access memory is a type of memory used in industrial, networking, computers and consumer electronics. It achieves greater bandwidth than the preceding single-data-rate SDRAM by transferring data on both the rising and falling edges of the clock signal.

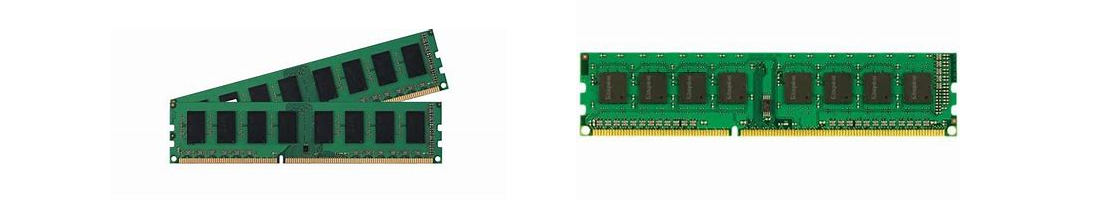

DDR2 SDRAM ( double-data-rate synchronous dynamic random access memory generation 2 ) is a type of memory used in automotive, industrial, computer and consumer electronics. It achieves greater bandwidth than the preceding DDR SDRAM by higher clock rate.

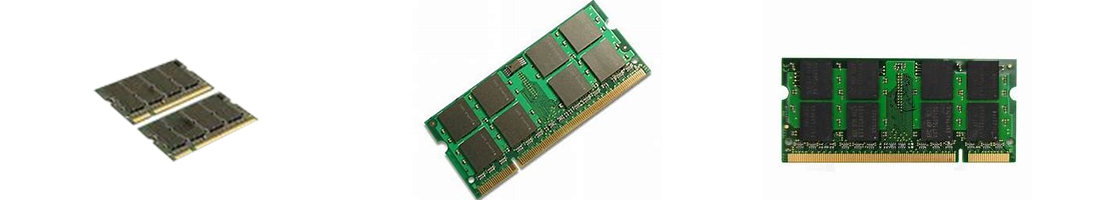

 4.Introduction to DDR3 SDRAM

The constant evolution of tech has placed great emphasis on lighter and faster data processing components for computing devices. Consequently, ultra-fast RAM chips with the ability to operate under low power settings have become the standard. Double data rate 3 (DDR3) SDRAM modules are third-generation DDR memory chips with rapid data transference rates.

Applications of DDR3 SDRAMs

The stability and efficiency of third-generation DDR RAMs make them suitable for several applications including the following:

Solid-state drives in personal computers

Printers

Industrial computing platforms

Networking systems

Power equipment
